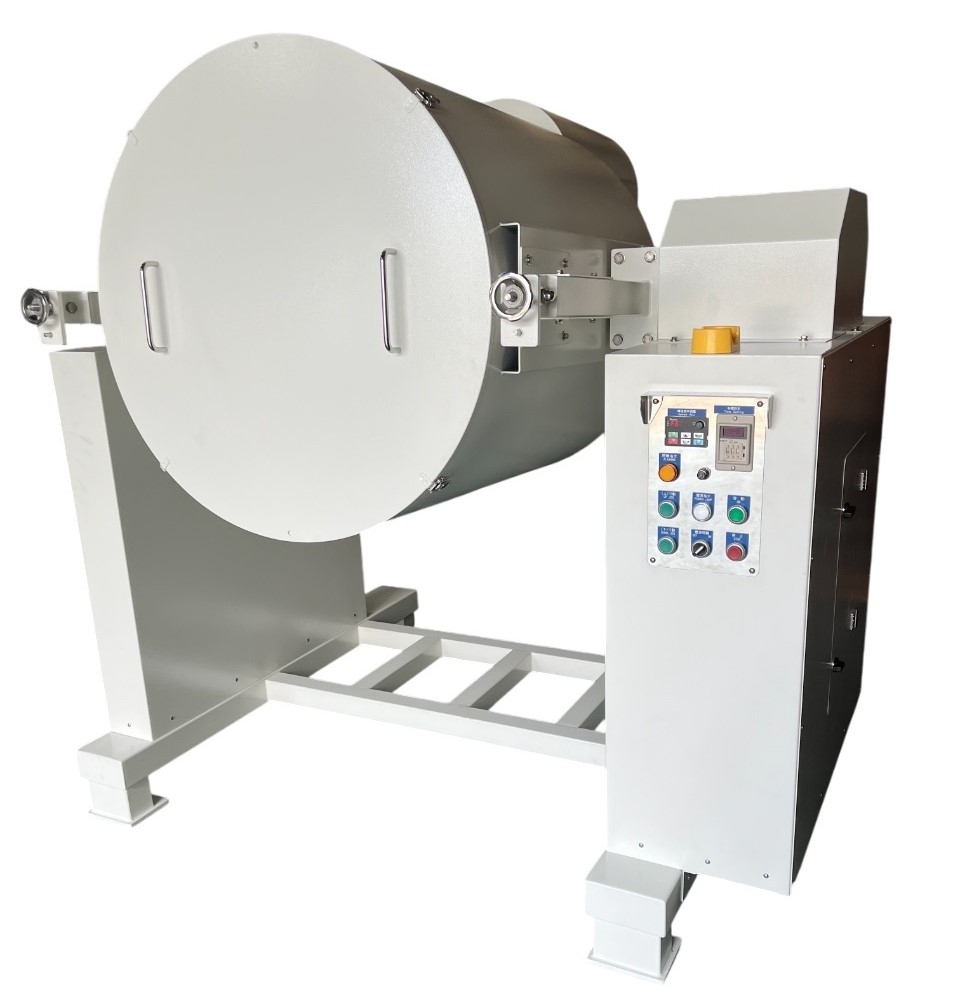

200L Ball Mill(RT-BM20) - Rong Tsong Precision Technology Co.

Product

Low-RPM, batch-type sealed design with low steady-state temperature (at around 10-20 degrees Celsius above the ambient temperature) that preserves the color and fragrance of the material.
Working principle: The motor drives the rotation of the octagonal shell, causing the ceramic balls inside to be lifted and then dropped onto the material. The resulting high-energy impact and friction effectively reduce the material in size.
The machine frame is made of SS41 with a baked paint surface treatment. The octagonal shell and its lid are made of SUS304 stainless steel. The O-ring on the lid is made of silicone. The ceramic balls are made of aluminum oxide and manufactured in Japan. The design complies with food hygiene standards.
The machine can operate continuously for 24 hours without requiring human supervision, reducing labor costs and enabling unmanned operation during nighttime.
A sound insulation cylinder can be installed around the octagonal shell to reduce operational noise.

Operational demo video:

Power:2HP+1HP Converter

Voltage:220V/380V/3 Phase

Mill Shell Material:SUS304 Stainless Steel

Capacity:200L Ball

Material:Ceramic

Finess:200-300Mesh

Dimesion:163*149*161CM

>>>Machine prohibited range and warranty description

Please do not use machines that are manufactured/sold by our company to grind/mix ingredients that are dangerous, explosive, flammable, conductive etc. to prevent user injury. If incident happens, it will not be related to our company.
Machines that are manufactured by Rong Tsong provides a one-year-warranty under normal usage. Consumables are not included in the warranty.
Under normal usage, machines will be provided free mantainence during warranty period(Does not include transportation/freight charges)
If there is any problem with the machine, please contact our company first to inform us regarding the machine malfunction. (Working hours: Monday ~ Friday. 8:00AM~12:00PM ; 1:00PM~5:00PM. Off on the weekends)
No matter if the machine is still within the warranty period or not, charges required for the machine to be send back to our company for mantainence/repairing will be covered by the user's side.
